Configure Agent Node¶

By default, the Agent Node is disabled. Enable the node from Generative AI Tools > GenAI Features > Dynamic Conversations. Learn more.

Add the node to a dialog task and configure the node's properties and tool calling capabilities.

Add Agent Node to a Dialog Task¶

Steps to add an Agent node to a Dialog Task:

Go to Automation > Dialogs and select the task that you are working with.
You can add the Agent Node just like any other node. You can find it in the main list of nodes.

Configure Agent Node¶

Component Properties¶

The component properties empower you to configure the following settings. The changes made within this section affect this node across all instances and dialog tasks.

It allows you to provide a Name and Display Name for the node. The node name cannot contain spaces.

Model Configuration¶

Adjusting the settings allows you to fine-tune the model’s behavior to meet your needs. The default settings work fine for most cases. You can tweak the settings and find the right balance for your use case. A few settings are common in the features, and a few are feature-specific:

Model: The selected model for which the settings are displayed.
Prompt/Instructions or Context: Add feature/use case-specific instructions or context to guide the model.
Conversation History Length: This setting allows you to specify the number of recent messages sent to the LLM as context. These messages include both user messages and virtual assistant (VA) messages. The default value is 10. This conversation history can be seen from the debug logs. Note: Applicable only if you are using a custom prompt.
Temperature: The setting controls the randomness of the model’s output. A higher temperature, like 0.8 or above, can result in unexpected, creative, and less relevant responses. On the other hand, a lower temperature, like 0.5 or below, makes the output more focused and relevant.
Max Tokens: It indicates the total number of tokens used in the API call to the model. It affects the cost and the time taken to receive a response. A token can be as short as one character or as long as one word, depending on the text.
Fallback Behavior: Fallback behavior lets the system determine the optimal course of action on LLM call failure or the Guardrails are violated. You can select fallback behavior as:
- Trigger the Task Execution Failure Event
- Skip the current node and jump to a particular node. The system skips the node and transitions to the node the user selects. By default, ‘End of Dialog’ is selected.

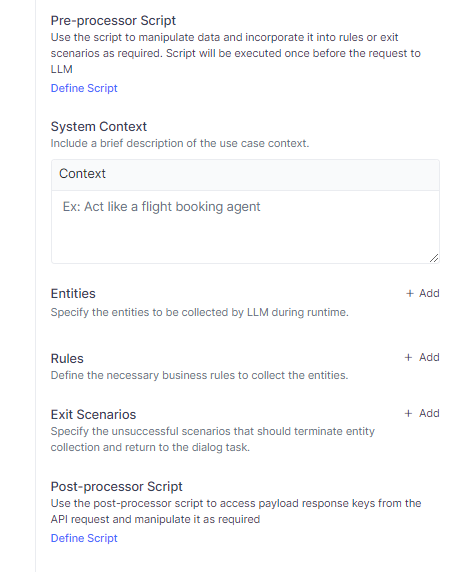

Pre-Processor Script¶

This property helps execute a script as the first step when the Agent Node is reached. Use the script to manipulate data and incorporate it into rules or exit scenarios as required. The Pre-processor Script has the same properties as the Script Node. Learn more.

To define a pre-processor script, click Define Script, add the script you want to execute, and click Save. Enable Auto Save to save your work automatically after one second of inactivity. It must be re-enabled each time you open the editor.

Entities¶

Specify the entities to be collected by LLM during runtime. In the Entities section, click + Add, enter an Entity Name, and select the Entity Type from the drop-down list.

Most entity types are supported. Here are the exceptions: custom, composite, list of items (enumerated and lookup), and attachment. See Entity Types for more information.

System Context¶

Add a brief description of the use case context to guide the model.

Tools¶

Tools allow the Agent Node to interact with external services, fetching or posting data as needed. When called, they let language models perform tasks or obtain information by executing actions linked to Script, Service, or Search AI nodes. Users can add a maximum of 5 tools to each node.

Note

The Agent Node supports tool-calling with custom JavaScript prompts in non-streaming mode.

Click + Add to open the New Tool creation window.

Define the following details for tool configuration:

Name: Add a meaningful name that helps the language model identify the tool to call during the conversation.
Description: Provide a detailed explanation of what the tool does to help the language model understand when to call it.
Parameters:Specify the inputs the tool needs to collect from the user. Define up to 10 parameters for each tool and mark them as mandatory or optional.
- Name: Enter the parameter name.
- Description: Enter an appropriate description of the parameter.
- Type: Select the parameter type (String, Boolean, or Integer).
Actions: These are the nodes that the XO Platform executes when the language model requests a tool call with the required parameters. Users can add up to 5 actions for each tool. These actions are chained and executed sequentially, where the output of one action becomes the input for the next.
- Node Type: Select the node type (Service Node, Script Node, Search AI Node) from the dropdown.
- Node Name: Select a new or existing node from the dropdown.
Response Path: The final output from the action nodes is required to be added as a Response Path for the Platform to understand where to look for the actual response in the payload. Choose the specific key or path that defines the output.
Choose transition: Define the behavior after tool execution:
- Default: Send the response back to the LLM. It is mandatory to have a Response Path in this case.
- Exit Node: Follow the transitions defined for the Agent Node.
- Jump to a Node (Coming soon): You can jump to any node defined in the dialog.

Rules¶

Add the business rules that the collected entities should respect. In the rules section, click + Add, then enter a short and to-the-point sentence, such as:

The airport name should include the IATA Airport Code;
The passenger’s name should include the last name.

There is a 250-character limit to the Rules field, and you can add a maximum of 5 rules.

Exit Scenarios¶

Specify the scenarios that should terminate entity collection and return to the dialog task. This means the node ends interaction with the generative AI model and returns to the dialog flow within the XO Platform.

Click Add Scenario, then enter short, clear, and to-the-point phrases that specifically tell the generative AI model when to exit and return to the dialog flow. For example, Exit when the user wants to book more than 5 tickets in a single booking and return "max limit reached".

There is a 250-character limit to the Scenarios field, and you can add a maximum of 5 scenarios.

Post-Processor Script¶

This property initiates the post-processor script after processing every user input as part of the Agent Node. Use the script to manipulate the response captured in the context variables just before exiting the Agent Node for both the success and exit scenarios. The Post-processor Script has the same properties as the Script Node. Learn more.

Important Considerations

If the Agent Node requires multiple user inputs, the post-processor is executed for every user input received.

To define a post-processor script, click Define Script and add the script you want to execute.

Instance Properties¶

Configure the instance-specific fields for this node. These apply only for this instance and will not affect this adaptive dialog node when used in other tasks. You must configure Instance Properties for each task where this node is used.

User Input¶

Define how user input validation occurs for this node:

Mandatory: This entity is required and must be provided before proceeding.
Allowed Retries: Configure the maximum number of times a user is prompted for a valid input. You can choose between 5-25 retries in 5-retries increments. The default value is 10 retries.
Behavior on Exceeding Retries: Define what happens when the user exceeds the allowed retries. You can choose to either End the Dialog or Transition to a Node – in which case you can select the node to transition to.

Auto Correct¶

Toggle enable/disable the Auto Correct for spelling and other common errors.

Advanced Controls¶

Configure advanced controls for this node instance as follows:

Intent Detection

This applies only to String and Description entities: Select one of these options to determine the course of action if the VA encounters an entity as a part of the user utterance:

Accept input as entity value and discard the detected intent: The VA captures the user entry as a string or description and ignores the intent.
Prefer user input as intent and proceed with Hold & Resume settings: The user input is considered for intent detection, and the VA proceeds according to the Hold & Resume settings.
Ask the user how to proceed: Allow the user to specify if they meant intent or entity.

Interruptions Behavior

To define the interruption handling at this node. You can select from the below options:

Use the task level ‘Interruptions Behavior’ setting: The VA refers to the Interruptions Behavior settings set at the dialog task level.
Customize for this node: You can customize the Interruptions Behavior settings by selecting this option and configuring it. You can choose whether to allow interruptions or not, or to allow the end user to select the behavior. You can further customize Hold and Resume behavior. Read the Interruption Handling and Context Switching article for more information.

Custom Tags

Add Custom Meta Tags to the conversation flow to profile VA-user conversations and derive business-critical insights from usage and execution metrics. You can define tags to be attached to messages, users, and sessions. See Custom Meta Tags for details.

Connections Properties¶

Note

If the node is at the bottom of the sequence, then only the connection property is visible.

Define the transition conditions from this node. These conditions apply only to this instance and will not affect this node’s use in any other dialog. For a detailed setup guide, See Adding IF-Else Conditions to Node Connections for a detailed setup guide.

Custom Prompt for Agent Node¶

Custom prompts are required to work with the Agent Node for tool-calling functionality. Platform users can create custom prompts using JavaScript to tailor the AI model's behavior and generate outputs aligned with their specific use case. By leveraging the Prompts and Requests Library, the users can access, modify, and reuse prompts across different Agent Nodes. The custom prompt feature enables users to process the prompt and variables to generate a JSON object, which is then sent to the configured language model. Users can preview and validate the generated JSON object to ensure the desired structure is achieved.

Agent Node with custom prompt supports configuring pre and post-processor scripts at both node and prompt levels. This enables platform users to reuse the same custom prompt across multiple nodes while customizing the processing logic, input variables, and output keys for each specific use case.

When you configure pre and post-processor scripts at both node and prompt levels, the execution order is: Node Pre-processor → Prompt Pre-processor → Prompt Execution → Prompt Post-processor → Node Post-processor.

Warning

Configuring pre and post-processor scripts at both node and prompt levels may increase latency.

Note

Node-level pre and post-processor scripts support App Functions in addition to content, context, and environment variables.

Let’s review a sample prompt written in Javascript and follow the step-by-step instructions to create a custom prompt.

Sample JavaScript

let payloadFields = {
"model": "gpt-4",
"temperature": 0.73,
"max_tokens": 1068,
"top_p": 1,
"frequency_penalty": 0,
"presence_penalty": 0,
"messages": [
{
"role": "system",
"content": You are a virtual assistant representing an enterprise business, and so you have to act professionally at all times. You do not participate or respond to any abusive language or indulge in any conversation that does not represent enterprise business.\n ${System_Context} For the instructions that the user provides, you have to process the instructions. Here are the rules that you are supposed to follow: \n ${Business_Rules}\n and List of entities you need to capture from user are ${Required_Entities}. You need to capture all these entitites .\n If user has provided the required value for any of the required inputs, then do not prompt for it again.\n Generate appropriate prompt to the end user to collect the information\n In the output return JSON must containing {"bot"://next prompt , "conv_status": "ongoing" or "ended","entities":[] } \n - Use the same format for tool responses.\n When returning the result return a json format \n Once all the entities details are captured  AND No function/tool calls are pending AND No follow-up actions are needed then only generate conv_status as 'ended'. When the flow is to be continued or aAny required entity is still pending collection or A tool/function needs to be called or User input requires clarification, generate conv_status as 'ongoing' \n If any enitity is already captured do not ask user about it again.\n Keep the prompts and messages voice friendly in ${language}.\n If there are mutiple entities, return entitites in format of json of object in key values pairs.\n If any one of the below scenarios are met , generate conv_status as 'ended': ${Exit_Scenarios} conversation history string ${Conversation_History_String}
},
]
};

if (Tools_Definition && Tools_Definition.length) {
    payloadFields.tools = Tools_Definition.map(tool_info => {
        return {
            type: "function",
            function: tool_info
        };
    });
}
let contextChatHistory = [];
Conversation_History.forEach(function (entry) {

    if (entry.role === "tool") {
        entry.content.forEach(function (content) {
            contextChatHistory.push({
                role: 'tool',
                content: content.result,
                tool_call_id: content.toolCallId
            });
        });
    } else if (entry.role === "user") {
        contextChatHistory.push({
            role: entry.role,
            content: entry.content
        })
    }
    else {
        if (typeof entry.content === "string") {
            contextChatHistory.push({
                role: entry.role === "bot" ? "assistant" : entry.role,
                content: entry.content
            })
        }
        else {

            contextChatHistory.push({
                role: entry.role,
                tool_calls: entry.content.map(function (content) {
                    return {
                        "id": content.toolCallId,
                        "type": "function",
                        "function": {
                            "arguments": JSON.stringify(content.args),
                            "name": content.toolName
                        }
                    }
                })
            })
        }
    }
});

payloadFields.messages.push(...contextChatHistory);
context.payloadFields = payloadFields;

// Push context chat history into messages

// Add user input to messages
// payloadFields.messages.push({
//     role: "user",
//     content: ${User_Input}
// });

// Assign payloadFields to context
context.payloadFields = payloadFields;

Add Custom Prompt¶

The process involves creating a new prompt in the Prompts Library and writing the JavaScript code to generate the desired JSON object. Users can preview and test the prompt to ensure it generates the expected JSON object. Once the custom prompt is created, users can select it in the Agent Node configuration to leverage its functionality.

For more information on Custom Prompt, see Prompts and Requests Library.

To add an Agent node prompt using JavaScript, follow the steps:

Go to Generative AI Tools > Prompts Library.
On the top right corner of the Prompts Library section, click + New Prompt.
Enter the prompt name. In the feature dropdown, select Agent Node and select the model.
The Configuration section consists of End-point URLs, Authentication, and Header values required to connect to a large language model. These are auto-populated based on the input provided while model integration and are not editable.
In the Request section, click Start from Scratch. Learn more.
Ensure the Stream Response is disabled, as the Agent Node supports tool-calling with custom JavaScript prompts in non-streaming mode.
Click JavaScript. The Switch Mode pop-up is displayed. Click Continue.

Note

The Agent Node supports tool-calling with custom JavaScript prompts in non-streaming mode.
Enter the JavaScript. The Sample Context Values are displayed. To know more about context values, see Dynamic Variables.
Enter the Variable Value and click Test. This will convert the JavaScript to a JSON object and send it to the LLM.

You can open a Preview pop-up to enter the variable value, test the payload, and view the JSON response.
The LLM's response is displayed.
In the Actual Response section, double-click the Key that should be used to generate the text response path. For example, double-click the Content key and click Save.
Enter the Exit Scenario Key-Value fields, Virtual Assistance Response Key, and Collected Entities. The Exit Scenario Key-Value fields help identify when to end the interaction with the Agent model and return to the dialog flow. A Virtual Assistance Response Key is available in the response payload to display the VA’s response to the user. The Collected Entities is an object within the LLM response that contains the key-value of pairs of entities to be captured.
Enter the Tool Call Request key. The tool-call request key in the LLM response payload enables the Platform to execute the tool-calling functionality.
Click Test. The Key Mapping pop-up appears.
1. If all the key mapping is correct, close the pop-up and go to step 15.
2. If the key mapping, actual response, and expected response structures are mismatched, click Configure to write the post-processor script.

  Note

  When you add the post-processor script, the system does not honor the text response and sets all child keys under the text and tool keys to match those in the post-processor script.

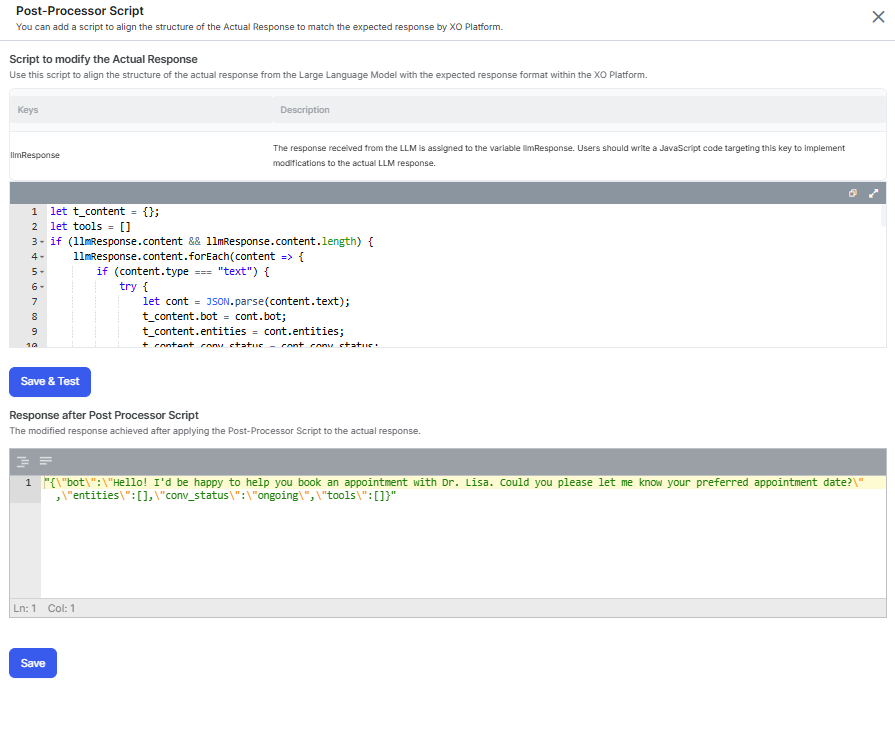

  1. On the Post-Processor Script pop-up, enter the Post-Processor Script and click Save & Test. The response path keys are updated based on the post-processor script.
  2. The expected LLM response structure is displayed. If the LLM response is not aligned with the expected response structure, the runtime response might be affected. Click Save.
Click Save. The request is added and displayed in the Prompts and Requests Library section.
Go to the Agent Node in the dialog. Select the Model and Custom Prompt for the tooling calling.

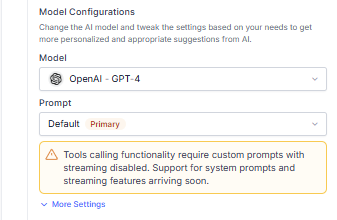

If the default prompt is selected, the system will display a warning that “Tools calling functionality requires custom prompts with streaming disabled.

Expected Output Structure¶

Defines the standardized format required by the XO Platform to process LLM responses effectively.

Format Type	Example
Text Response Format	{ "bot": "Sure, I can help you with that. Can I have your name please?", "analysis": "Initiating appointment scheduling.", "entities": [], "conv_status": "ongoing" }
Conversation Status Format	{ "bot": "Sure, I can help you with that. Can I have your name please?", "analysis": "Initiating appointment scheduling.", "entities": [], "conv_status": "ongoing" }
Virtual Assistant Response Format	{ "bot": "Sure, I can help you with that. Can I have your name please?", "analysis": "Initiating appointment scheduling.", "entities": [], "conv_status": "ongoing" }
Collected Entities Format	{ "bot": "Sure, I can help you with that. Can I have your name please?", "analysis": "Initiating appointment scheduling.", "entities": [], "conv_status": "ongoing" }
Tool Response Format	{ "toolCallId": "call_q5yiBbnXPhEPqkpzsLv2isho", "toolName": "get_delivery_date", "result": { "delivery_date": "2024-11-20" } }
Post-Processor Script Format	{ "bot": "I'll help you check the delivery date for order ID 123.", "entities": [{"order_id": "123"}], "conv_status": "ongoing", "tools": [ { "toolCallId": "toolu_016FWtdANisgqDLu3SjhAXJV", "toolName": "get_delivery_date", "args": { "order_id": "123" } } ] }

Context Object¶

The context object is used to get the entities and the parameters of tools.

Entities	{context.AI_Assisted_Dialogs.GenAINodeName.entities[x].{entityName}}
Parameters	{context.AI_Assisted_Dialogs.GenAINodeName.active_tool_args.{parameterName}}

Dynamic Variables¶

The Dynamic Variables like Context, Environment, and Content variables can now be used in pre-processor scripts, post-processor scripts, and custom prompts.

Learn more.

Keys	Description
{{User_Input}}	The latest input by the end-user.
{{Model}} Optional	This specifies the LLM tagged to the Agent Node in the Dialog Task.
{{System_Context}} Optional	This contains the initial instructions provided in the Agent Node that guide how the LLM should respond.
{{Language}} Optional	The language in which the LLM will respond to the users
{{Business_Rules}} Optional	Rules mentioned in the Agent Node are used to understand the user input and identify the required entity values.
{{Exit_Scenarios}} Optional	Scenarios mentioned in the Agent Node should terminate entity collection and transition to the next node based on Connection Rules.
{{Conversation_History_String}} Optional	This contains the messages exchanged between the end-user and the virtual assistant. It can used only in the JSON prompt.
{{Conversation_History_Length}} Optional	This contains a maximum number of messages that the conversation history variable can hold.
{{Required_Entities}} Optional	This contains the list of entities (comma-separated values) mentioned in the Agent Node to be captured by the LLM.
{{Conversation_History}} Optional	Past messages in the conversation are exchanged between the end-user and the virtual assistant. This is an array of objects with role and content as keys. It can used only in the JavaScript prompt
{{Collected_Entities}} Optional	List of entities and their values collected by the LLM. This is an object with an entity name as the key and the value as LLM collected value.
{{Tools_Definition}} Optional	List of tools that will enable the language model to retrieve data, perform calculations, interact with APIs, or execute custom code.

Tool Calling in Debug Logs¶

The debug logs capture the entire execution flow, including the conversation history array and the tools being called. The conversation history array tracks the interaction between the user and the assistant, while the tool calls (FundsTransfer, PayeesAvailableCheck) represent the specific actions or functions invoked by the assistant to fulfill the user's request.

By examining the debug logs, users can trace the steps taken by the assistant, understand how it processes the user's input, and see how it interacts with different tools to complete the requested task. The logs provide crucial visibility into the underlying execution and are invaluable for debugging, monitoring, and gaining a deeper understanding of the assistant's behavior.

The debug logs on the left side of the screenshot below provide a comprehensive view of the execution flow and the interactions between the user, the assistant (Finance Buddy), and the underlying system. This detailed view ensures that you are fully informed about the process.

Here's a step-by-step explanation of the execution captured in the debug logs:

The user initiates the conversation with Finance Buddy, requesting to transfer funds to the user.
Finance Buddy responds, asking how it can help the user.
The user expresses their intent to transfer funds to a person.
The Agent Node is initiated (Agent node initiated).
The Agent Node Request Response Details are captured in JSON format and contain the conversation history up to this point.
The tool execution (FundsTransfer) is initiated. This indicates that the assistant has determined that the tool needs to be called based on the user's request.
The assistant checks if the person (Raj Kumar) is already registered as a payee in the user's account. To verify this, it calls the PayeesAvailableCheck tool.
The PayeesAvailableCheck tool completes execution, and the result is captured in the debug logs. The assistant determines that the person is registered as a payee.
The assistant informs the user that the person is registered as a payee and requests additional details to proceed with the fund transfer. It asks the user to select the transfer type (NEFT/IMPS/RTGS), provide the transfer amount, and confirm their account ID.
The user provides the requested information.
The assistant calls the FundsTransfer tool with the provided details to initiate the fund transfer.
The FundsTransfer tool completes execution, and the Agent Node captures the updated conversation history array in the request-response details.
The XO Platform exits the Agent node.
