API Agents¶

API Agents builder is a powerful feature that allows users to build API agents and integrate them with their legacy systems using APIs and a no-code builder. API agent enable business users to interact seamlessly with their data through natural language queries.

Key Features¶

Easy Setup: Users can create API agent through a step-by-step wizard in the admin console.
Flexible Configuration: The tool supports various API types, authentication methods, and data processing options.
Customizable Fields: Users can select and configure up to ten fields for querying and data representation.
Intelligent Querying: The system handles simple lookups, compound queries, and computational requests.
Data Processing: Features like ID and meta-resolution help present meaningful information to end users.
Preview and Testing: Users can view processed data and test their configurations before publishing.
Sharing Options: Agents can be shared with specific users, groups, or the entire organization.

Note

Currently, API agent can handle a maximum of 500 records per API response and support only standard REST APIs.

Create a API Agent¶

Users can create a API Agent from the User Profile > Admin Console> AI Search > API Agents> + Create Agent. The setup wizard guides you through the entire process, from initial setup to deployment.

The API agent creation process consists of the following steps:

Step 1: Define the purpose of the Agent.

Step 2: Provide basic details of the Agent.

Step 3: Set up a connection for data retrieval from an external system.

Step 4: Define the specific Actions the API agent can perform.

Step 5: Publish the Agent.

Prerequisites:

Administrator access to AI for Work and the system you want to integrate.
API documentation for Schema API and Action API of the system.
Curl commands for the ID resolver and the meta resolver of the system.

Step 1: Purpose of Agent¶

Briefly describe the system you want to integrate and the desired actions you want to perform in 50 words. Example: "Integrate Jira system to manage tickets. Actions include getting ticket details, creating new tickets, or updating existing tickets." This purpose helps API Agent understand your system's capabilities and accurately interpret user intents/requests using Generative AI.

Enter the purpose and click Continue.

Step 2: Basic Details¶

In the Basic Details step, you can provide the Agent's name and select a logo. You can choose the logo from preset options or upload a custom image. The name and logo will represent the API agent in the user interface, helping users identify the source of information.

Enter a name for the Agent Name, select an appropriate Logo, and click Continue.

Step 3: Connection Setup¶

Connection Setup currently uses admin-provided profiles. The system accesses data using these profiles and admin tokens for all retrieval operations. End users cannot create new connection profiles, meaning all data is fetched using admin credentials.

Step 4: Actions¶

Step 4.1: Purpose¶

Briefly describe the specific action your API agent can perform, including what information the Agent can retrieve and from which fields. For example, "Get the Jira issues based on assignee, priority, status, and due date." The description helps the Agent understand and execute user requests accurately using Generative AI.

Currently, the Agent supports GET and POST actions, meaning the Agent can be configured to retrieve and write information.

Add the Purpose of action and click Continue.

Step 4.2: Data¶

This section contains all the field configurations necessary for processing the data.

Have Definition API¶

You can choose one of the following options to define the data structure:

API defining the fields: Select this if you have an API that explicitly defines data fields. This helps with field names in the actual API and prefills values for single-select and multi-select.
Continue with Data API: Select this if you don't have a data-defining API.

Note

This option disables the "Schema API" and "Label Selection" steps in the setup process. You can directly go to the Data API tab.

Select the option that best matches your API resources. The system will adapt to your chosen structure, ensuring an appropriate setup path.

Schema API¶

The Schema API provides essential information about your data structure, such as field definitions, data types, possible values, custom fields, multi-select options, etc. This is crucial for understanding data structure, accurate data mapping, and proper integration with external systems (e.g., Jira, HubSpot).

To configure the schema API, provide the details - define it manually or use the CURL URL. Once the API details are entered, you can execute the API. If successful, click Continue. If an error occurs, an appropriate message is displayed.

This process ensures accurate data structure information for proper integration and handling.

Note

Authorization in the CURL URL overrides the previous user auth selection.

Follow these steps to add schema API:

On the Schema API tab, you can define the API manually or import it using CURL. For example, click CURL Import.
The import URL pop-up is displayed.
Enter the URL and click Import.
On the Schema API tab, click Run.
The success pop-up is displayed. Click Continue.

Label Selection¶

The system displays fields of records from imported data in JSON format. You must select a key to serve as the field label name for end users, as the default key may be difficult to understand. The chosen key applies to all corresponding fields in the dataset.

You should map or replace existing keys with more appropriate definitions. This process replaces original field names with user-defined labels when loading the Data API into the system. This ensures that field names are meaningful and easily interpretable within the business context.

You can navigate through records using the "Prev field" and "Next field" options.

On the Label Selection tab, the attributes are displayed. Select the label and click Continue.

Data API¶

You can define the data API manually or via the CURL Import option. This API provides the actual data. The system uses the authorization in the CURL URL, overriding previous user auth selections.

Follow these steps to add data API:

On the Data API tab, click CURL Import.
The import URL pop-up is displayed.
Enter the URL and click Import.
On the Data API tab, click Run.
The success pop-up is displayed. Click Understood.

Field Selection¶

Field selection determines which data is visible to users and available for search queries, optimizing the user interface and the search functionality. You can select up to 10 fields from the API response for practical use within the system.

Example: In a Jira context, you can choose fields like assignee, status, priority, key, and summary for filtering and display. If you select only two out of five available fields, the system restricts search and display to those two fields only.

The screenshot below shows that the query can be generated using three selected fields - id, amount, and dealname.

On the Select Fields section, click the field to select. Click Continue. You can navigate through records using the "Prev field" and "Next field" options.

Field Configuration¶

The Field Configuration tab lets you configure the fields that you selected earlier. The tab shows the following fields/attributes that can be configured:

Primary Field: Select the primary field for the data table. This field will be the leftmost column presented to users.

Field Key: It shows user-chosen fields (non-editable) used to construct API requests. Each field corresponds to a specific API key, which may differ from the user-visible label. For example, "JIRA ID" might be displayed to users, but the API request uses "id" as the parameter.

This mapping ensures accurate data retrieval by translating user-friendly labels into the correct API parameters. The system creates precise API queries with selected fields and keys, balancing clarity and accuracy in data retrieval.

Field Label: Sourced from the schema API response and field selection tab. You can modify or add missing labels as needed. If the schema API doesn't provide a label, you can input one manually.

Field Type: The field type determines how users can query each field. This information is crucial for constructing appropriate filter APIs. For example, text fields require different query parameters compared to object fields.

Field types are primarily derived from the schema API. Additionally, the system employs internal logic to set field types when necessary. Some fields, like assignee, status, and priority, may be represented as nested JSON structures.

Accurate field types ensure the system generates correct query syntax for each field, enabling accurate and efficient data filtering. It also helps display appropriate options to users when they construct queries.

Field Value Resolver: It's applicable only to object field types. A Field Value Resolver can help with the following:

Handles and renders information returned from a data API.
Maps values to appropriate labels and icons.
Extracts and displays relevant data from nested JSON objects in a user-friendly format.

Field Value Resolvers maintain data integrity in presentation and interaction, bridging user-friendly labels with technical API requirements.

Follow these steps to add a field value resolver:

Click the + (Plus) icon in the field value resolver for the field type object.
The Value Resolver pop-up is displayed.
1. If the field value resolver didn't find the JSON, the following value resolver pop-up is displayed. Click Define API to resolve the id.
  1. Click CURL Import. You can also use a dictionary instead of a CURL import. Learn how to create one.
  2. The import URL pop-up is displayed. Paste the URL and click Import.
  3. Type in the Sample Input and click Run.
  4. The Output Fields are displayed.
  5. Close the pop-up. The ID resolver is displayed.
2. If the field value resolver finds the JSON, the following value resolver pop-up is displayed.
  1. Click Goto Mapper.
  2. Click Map Value. Select fields pop-up is displayed. This step resolves the fields.
  3. Select the field which is displayed to the user and close the pop-up. For example, "displayName".
  4. Click Map ID. Select fields pop-up is displayed.
  5. Select the field that will be passed to the API and close the pop-up. For example, "accountId".
  6. If Map Color, Map Icon, and Map Icon Color information is available, map the required fields and close the pop-up.
The field value resolver mapping is completed.

Field Options: Field Options are predefined choices for single-select or multi-select fields, helping users filter and retrieve data accurately. These options are activated when a field is identified as single-select or multi-select and are typically fetched from the schema API.

Each option includes a label, value, display order, and visibility status. This structure allows for flexible and customizable presentation of choices to the user.

A crucial feature of Field Options is the mapping between user-friendly labels and technical keys required for API requests. For example, while a user might see a "Priority" field with options like "High," "Medium," and "Low," the API might use corresponding numerical or string values. This mapping ensures accurate data retrieval by configuring what is displayed to the user and what is sent in API requests.

Note

This field is applicable only if the Field Type is Single Select or Multi Select.

Follow these steps to add field options:

Click the + (Plus) icon in the field option for the field type Single Select or Multi Select.
The options pop-up is displayed.
Enter the Map Value (Sent to the API) and Map Label (Displayed to the user) for each priority.
1. If the schema API is mapped:
  1. Click Map Value, the JSON object is displayed.
  2. Select the field that will be passed to the API.
  3. Click Map Lable, the JSON object is displayed.
  4. Select the field which will be displayed to the user.
  5. Rest all the choices are automatically populated.
2. If the schema API is not mapped, manually enter map value and map label for each choice. For example, if you have high, medium, and low priority choices.
Close the pop-up.

Field Meta Resolver: The Field Meta Resolver interprets user-provided meta-information and determines the correct value to send to the API. It resolves specific field values at runtime before making API calls, ensuring data retrieval and filtering accuracy.

This resolver includes an API module for defining and testing with sample input. It works similarly to an ID resolver, requiring the definition of the API call and the input mapping for both value and ID.

A key function of the Field Meta Resolver is retrieving the id of entities extracted from the user query.

Note

This field is applicable only if the Field Type is Object.

Follow these steps to add a field meta resolver:

Click the + (Plus) icon in the field meta resolver for the field type object.
Click CURL Import. You can also use a dictionary instead of a CURL import. Learn how to create one.
The import URL pop-up is displayed. Paste the URL and click Import.
Type in the Sample Input and click Run.
The Output Fields are displayed.
Close the pop-up. The ID resolver is displayed.
Click Continue.

Dictionary¶

If API support is unavailable, you can use a dictionary as a local data store to map and resolve IDs or metadata. It acts as a cache, storing data fetched from APIs for fast, local queries, reducing the need for repeated API calls. You can schedule automatic updates to keep the dictionary current. Once created, it can be shared across agents or modules within the same account, making it a useful tool for improving performance and reducing dependency on APIs.

You can use the existing dictionary if any. To select, toggle Use Dictionary, select the dictionary, and click Run. The output fields are displayed.

Follow these steps to create a dictionary:

On the field value resolver or field meta resolver popup, toggle the Use Dictionary.
Click + Create.
On the Name & API tab, enter the dictionary name, API call details to feed the dictionary, and pagination details if required.
Click Run API. The field selection tab is displayed.
On the Field Selection tab, select the fields to be searched, ID resolver field, Schedule to Pool data frequency, and enter the meta resolver field.
Click Pool data into the dictionary. The preview tab is displayed.
On the Preview tab, the pooled data is displayed.
Click Done. The dictionary is saved.

Preview¶

Displays processed data to users, initially showing five records with an option to load more. Users can configure an “open” option that appears when hovering over any record. Clicking it will open a record in a new tab.

Follow these steps to create a URL:

To configure the URL, click + Create URL.
The Open URL pop-up is displayed.
Enter the Static URL. For example, https://koreteam.atlassian.net/browse/.

Note

You can create a Dynamic URL using the response objects.
The Variable mapper pop-up is displayed. Select the dynamic part of the URL i,e Key, and close the pop-up.
Click Done. The Open option and the configured link are displayed.
Click Continue.

Step 4.3: Query Filters¶

There are two types of query filters:

Field Filters¶

Field Filters lets you define which fields are available for querying and filtering data. Fields can be marked as queryable and mandatory. When a field is mandatory, users must specify its value to retrieve data. For instance, if "Project" is set as mandatory in Jira issue queries, the system prompts you to specify the project before returning any results.

Additionally, field filters generate a sample query based on the selected fields and the uploaded API document. Running this query automatically produces a configuration builder script. This script manages various field combinations and compound queries, saving you from manual scripting. Field Filters provide filter configurations for different fields, combinations, and data types. Ensure you test the generated configurations and refine the script if necessary.

Follow these steps to configure the filters:

The selected fields are auto-populated.
- In the Allow Query column, select the fields on which you want to run a query. By default, all the fields are selected.
- Select the Allow multiple values checkbox for fields where you want to allow querying multiple values within a single request.
- Select the Mandatory checkbox for fields that you want to make mandatory for a running query. This field is disabled if the respective Allow Query field is not selected.
- Edit the Field_Filter_Key if required. This key is sent to the API. In a few cases, the field filter key differs when pushing data versus retrieving it. The populated keys are generated based on the API response.
Click Configure to generate sample queries based on the settings you configured in the Field filters.
Click Upload API documentation. The smart configuration pop-upload is displayed. Paste the API documentation and click Save. The query parameters are auto-populated.
Click Sample Query. The extracted variables are displayed.
Depending on the API type, perform the following.

In this step, users are expected to create an API payload using the entities extracted from the sample query provided above.

This payload will be utilized by the LLM, along with the entities and query, to generate a script. The generated script will be executed at runtime to dynamically create API payloads based on the user's queries. For each user query, the script will process the extracted entity variables and generate the corresponding API payload.

Important: The quality of the generated script will depend on the accuracy and completeness of the API payload provided by the user.
- For a GET call, the "query parameters" section is displayed. Uploading the API documentation pre-fills this section. Click the query parameters section to edit the configuration and view the variable mapper. You add additional query parameters as needed.
- For a POST call, the "body" section is displayed. Uploading the API documentation pre-fills this section. Click the body section to edit the configuration and view the variable mapper.

  Note

  Ensure that the configuration includes only variables in place of entities. This allows the APIs to be dynamically generated during runtime.
Scroll down and click Run. The configuration builder script is generated. This script runs on the sample query and displays the API response.
Click Run Queries to execute/test all the generated queries. If all the queries are executed correctly, the success message is displayed. If not, the error message is displayed.
(Optional) To fix failed queries, click Script to view and edit them. You can proceed without fixing, only successful and similar queries will work after publishing. To learn more about the script, click here.
Click Continue.

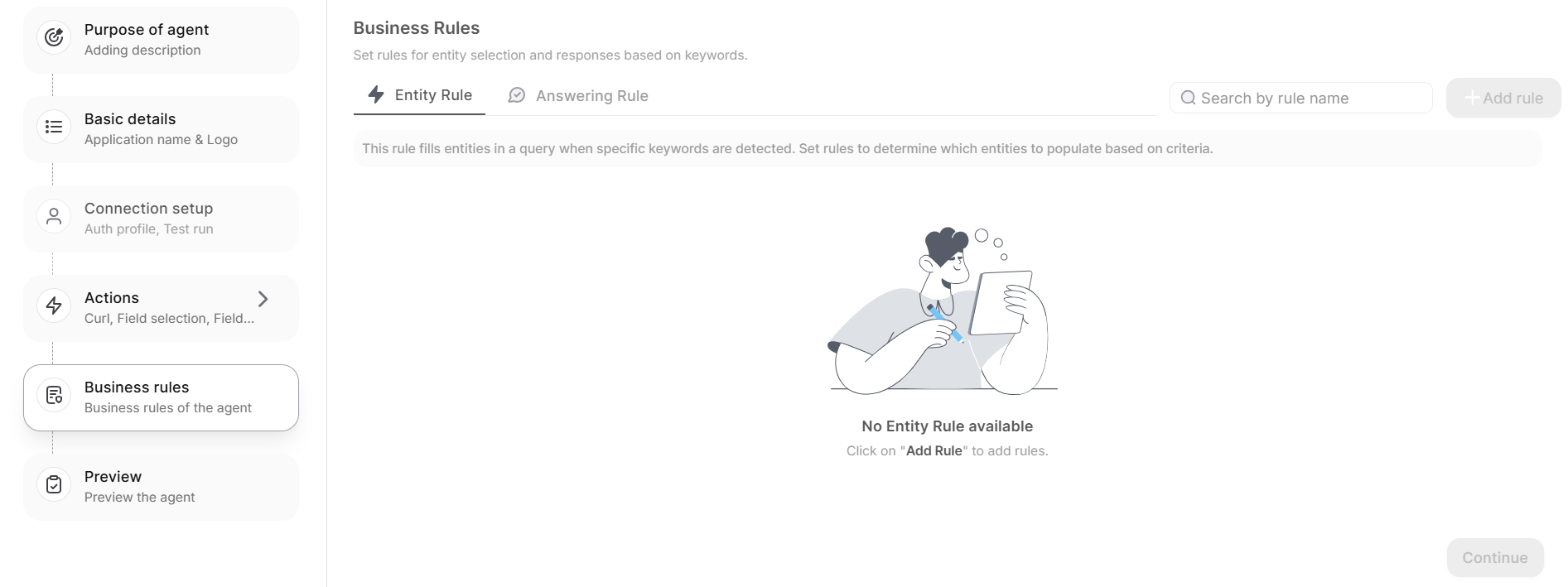

Business Rules¶

Business rules can enhance the Agent's ability to provide relevant and controlled responses. There are two types of business rules:

Entity Rule: Entity Rules allow administrators to add extra entities or information to user queries, even if the user does not explicitly mention them. These rules help tailor the Agent's response to business needs or expectations that may not be apparent from the user's input alone. Entity Rules are triggered for the active Agent.

Example: Interpreting "active deals" as deals in specific stages like "presentation," "working progress," or "contract in progress". When a user asks about active deals, the rule automatically adds these statuses to the query.

Click Entity Rule and enter the Rule. Click Activate and click Continue.

Answering Rule: Answering rules allow administrators to control and customize responses.

These rules act as prompts, guiding the Agent's behavior when specific conditions are met. They activate when the Agent is triggered with appropriate intent and keywords. Answering rules offers flexibility in managing responses, allowing administrators to fine-tune the Agent's behavior for consistency and control over information provided to users.

Example: An answering rule could be set up to respond with "contact sales" for any pricing-related questions.

Click Answering Rule and enter the Rule. Click Activate and click Continue.

Writing API Payloads with JavaScript¶

Function Signature¶

The script is actually an IIFE (https://developer.mozilla.org/en-US/docs/Glossary/IIFE), which is invoked for each query with three arguments: headers, body, and queryParams.

(function (headers, body, queryParams) {

    return { headers, queryParams, body }
})(headers, body, queryParams);

Note: Avoid changing or editing the above function signature.

All the 3 variables here (headers, body and queryParams) are pointing to the data api's header, body and queryParams. you can manipulate them as per your need to prepare api payload.

queryParams: The queryParams is an array, where each element is expected to be an object.

    {
    key : 'jql',
    value : 'assigneee = currentUser()',
    enabled : true/false
}

If "enabled" is explicitly marked as false, the corresponding array element will be ignored.

headers: The structure is the same as queryParams.

  {
      "key": "Content-Type",
      "value": "application/json",
      "enabled": true
  }

body: The body contains the actual JSON payload expected by the API. The example below represents the body payload expected by HubSpot to filter deals.

  {
      "filterGroups": [
          {
              "filters": [
                  {
                      "propertyName": "amount",
                      "operator": "EQ",
                      "value": 20000
                  },
                  {
                      "propertyName": "hubspot_owner_id",
                      "operator": "IN",
                      "value": [
                          "538262355"
                      ]
                  },
                  {
                      "propertyName": "pipeline",
                      "operator": "EQ",
                      "value": "default"
                  }
              ]
          }
      ],
      "properties": [
          "dealname",
          "hubspot_owner_id",
          "amount",
          "dealstage",
          "pipeline",
          "hs_priority",
          "hs_updated_by_user_id"
      ]
  }

Global Variable¶

In addition to headers, body, and queryParams, you have access to a global variable called entities.

The entities object contains extracted data from the query and is structured as follows:

  ```
       entities : {
        fieldId : {
            filterKey : fieldFilterKey, (which is there in filter field configuration)
            dataType  : enum [text, number, date, singleSelect, multiselect, object, objectArray],
            ...otherVariables
        }
    }

    Example :

    entities : {
        creator : {
            filterKey : creator
            dataType  : object,
            ...otherVariables
        }
    }



 ```

fieldId: A unique identifier for the field, which is same as the ID of the selected field.
filterKey: Corresponds to the filter key defined in the configuration.
dataType: The data type of the entity, such as text, number, date, singleSelect, etc.
otherVariables: Additional variables that may be defined based on the field configuration. It depends on both field configuration and data type.

Entity Examples¶

Simple Query (Object, Text, SingleSelect, MultiSelect)¶

Example Query: "Show all deals created by User"

  ```

entities : {
            fieldId : {
                filterKey : fieldFilterKey,
                dataType  : enum [text, number, date, singleSelect, multiselect, object, objectArray],
                value : 'extractedValue'
            }
        }

        Example :

        query :- show all deals created by user
        entities : {
            creator : {
                filterKey : creator,
                dataType  : object,
                value : '080-998df-ffal-9090'
            }
        }




```

Range-Based Query (Date, Number)¶

In this type of query, you can specify a "min", "max", or both, depending on the requirements of the query.

Example Query: "Show all deals with amounts between 20,000 and 50,000"

  ```

    entities : {
            fieldId : {
                filterKey : fieldFilterKey,
                dataType  : enum [number, date],
                min : 'minExtractedValue',
                max : 'maxExtractedValue',
                value : 'extractedValue'
            }
        }

        Example :

        query :- show all deals whose amount is in between 20,000 to 50,000
        entities : {
            amount : {
                filterKey : amount,
                dataType  : number,
                min : 20000,
                max : 50000




```

Example Query: "Show all deals with an amount of 40,000"

            entities : {
               amount : {
                   filterKey : amount,
                   dataType  : number,
                   value : 40000
               }
           }

Multiple Value Fields (Allow Multiple Values)¶

Example Query: "Show all Jira issues assigned to Prashanth Loka and Tanmay Agarwal**"**

   entities : {
               fieldId : {
                   filterKey : fieldFilterKey,
                   dataType  : enum [text, number, date, singleSelect, multiselect, object, objectArray],
                   values : [ 'extractedValue1', 'extractedValue2', .....]
               }
           }

           EXAMPLE :

           query:- show all jira issues assigned to prashanth loka and Tanmay agarwal.
           entities : {
               assignee : {
                   filterKey : assignee,
                   dataType  : object,
                   values : [ '9f0990-009-lklkl', '9099-ff-kll-9090']
               }
           }

Preparing the API Payload¶

Script for POST Request¶

The script below outlines how to prepare and send API payloads effectively for HubSpot integrations.

    (function (headers, body, queryParams) {

  // Write your code here
  const filterGroups = { filters: [] };

  for (const entityKey in entities) {

    const entity = entities[entityKey];

    if (entity.min) {
      filterGroups.filters.push({
        propertyName: entity.filterKey,
        operator: 'GTE',
        value: entity.min
      });
    }

    if (entity.max) {
      filterGroups.filters.push({
        propertyName: entity.filterKey,
        operator: 'LTE',
        value: entity.max
      });
    }

    if (entity.value) {
      filterGroups.filters.push({
        propertyName: entity.filterKey,
        operator: 'EQ',
        value: entity.value
      });
    }

    if (entity.values.length > 0) {
      filterGroups.filters.push({
        propertyName: entity.filterKey,
        operator: 'IN',
        value: entity.values
      });
    }

  }

  body.filterGroups = [filterGroups];
  body.properties = [
    'dealname',
    'hubspot_owner_id',
    'amount',
    'dealstage',
    'pipeline',
    'hs_priority',
    'hs_updated_by_user_id'
  ];
  return { headers, queryParams, body }
})(headers, body, queryParams);

Script for GET Request¶

Here is a complete script to handle Jira queries using a GET request with filters provided in the query parameters.

(function (headers, body, queryParams) {
  // Write your code here
  const jqlParts = [];
  for (const entityKey in entities) {
    const entity = entities[entityKey];
    if (entity.value) {
      jqlParts.push(${entity.filterKey} = ${entity.value});
    }
    if (entity.values) {
      const valuesString = entity.values.map(value => '${value}').join(', ');
      jqlParts.push(${entity.filterKey} IN (${valuesString}));
    }
    if (entity.min) {
      jqlParts.push(${entity.filterKey} >= ${entity.min});
    }
    if (entity.max) {
      jqlParts.push(${entity.filterKey} <= ${entity.max});
    }
  }
  const jqlQuery = jqlParts.join(' AND ');
  queryParams.push({ key: 'jql', value: jqlQuery, enabled: true });
  return { headers, queryParams, body }
})(headers, body, queryParams);

Step 4.4: Sample Queries¶

Sample queries are automatically generated based on the system's purpose and actions. These queries serve as quick references and starting points for users interacting with the API agent.

When a API agent is triggered, the sample queries are displayed. The user can click them to execute the associated actions.

You can manually add sample queries based on specific system requirements. This can be done using the + Add Query option. Click Continue.

Step 5: Publish¶

In the Publish section, you can finalize and deploy your agent. Follow the steps outlined below to publish the data agent

Provide the following details
- Published Version: Select the version of the agent you are publishing.
- Publish to: Choose who will have access to the agent:
  - Admins: Restrict the agent to Admin users only.
  - Selected User Groups/Users: Specify individual users or groups.
  - Everyone in the Account: Make the agent available to all users.
- Authentication Type: Select the type of authentication
  - Admin based: If you choose admin-based, admin tokens extract the data.
  - User based: f you choose user-based, user tokens extract the data
Click Publish. Once published, your agent is displayed in the Agent list of the Admin console page.

User Interaction¶

Interacting with the API Agent allows users to access important data quickly. With the no-code API Agent Builder, users can set up agents to connect to their existing systems and retrieve data through simple queries. For example, If a user asks "Get hotel data" or "Retrieve guest information", The API Agent processes these queries and returns the relevant data in a clear format.Users can also refine their queries for more specific information, such as "pull hotel database details" or "Display hotel info".
