Agentic App APIs¶
The Agent Protocol API enables programmatic interaction with your agents, allowing you to manage conversational sessions, execute agent logic, retrieve responses, and track asynchronous tasks.
Working with Agent Protocol APIs¶
Base URL¶
All requests are made to the following base URL.
Replace <agent-platform-env> with your specific environment name.
Authentication¶
All API requests must include an API Key in the Authorization header. You can generate the API key from the application. Refer to this to learn more about generating an API Key.
Note: API keys are app-specific. They are not shared across accounts or workspaces. Ensure that you use the API key associated with the correct app when making requests.
API List¶
The following table lists the Agent Protocol APIs that allow users to interact with agents and manage sessions.
| API | Description |
|---|---|
| Sessions API | Creates, retrieves, or ends a session with an agent to maintain conversation context. |
| Runs API | Sends user input to an agent within a session and receives a response. |
| File Upload API | Upload files that can be referenced during an agent run or processed as part of the conversation. |
Key Concepts and Terminologies¶
Below is a list of important terms used across the API documentation.
- App (AppId): Represents a specific App built on the Agent platform.
- Environment (envName): Refers to a deployment environment for the app. The environment name must match the exact name as configured in the application.
- Session (sessionId): A unique ID representing a single conversation between an end-user and the agent. Sessions allow multi-turn conversations by preserving context.
-
Session Identity: Used to reference a session or user. You can refer to the session in one or more of the following ways.
- sessionId: The unique, platform-generated ID for the session.
- sessionReference: A custom session identifier. If not set, it defaults to the userReference. This can be the session identifier for the application from which the Agentic app API is invoked.
- userReference: A unique identifier from your system that ties all sessions to a specific user. This must be unique to your system. It is a crucial identifier.
Refer to Session Resolutions steps below for more information.
-
Run (runId): Represents a single execution step within a session, typically triggered by user input and resulting in the agent’s response.
Session Resolution Process¶
Each session is uniquely identified by sessionId. sessionReference is used as a secondary way to refer to the session. It can be particularly useful when the app invoking Agentic App APIs needs to maintain its own session tracking. Each session is owned by a user, identified by a system-generated userId, which is typically derived from the provided userReference.
Session resolution follows a priority-based approach to determine how a session is created or reused. When more than one identifier is provided as input, the platform checks them in order of priority, starting with the highest. The session is resolved using the first identifier that matches. If no match is found, the platform moves on to the next identifier in the input.
| Identifier | Priority | Purpose |
| sessionId | Highest | Used only to retrieve an existing session. This identifier cannot be used to create new sessions. If a userReference is provided, it is validated against the session owner for security purposes.
|
| sessionReference | Medium | Attempts to find an existing session with the given sessionReference.
|
| userReference | Lowest | Always creates a new session associated with the specified user. Does not check for existing sessions. |

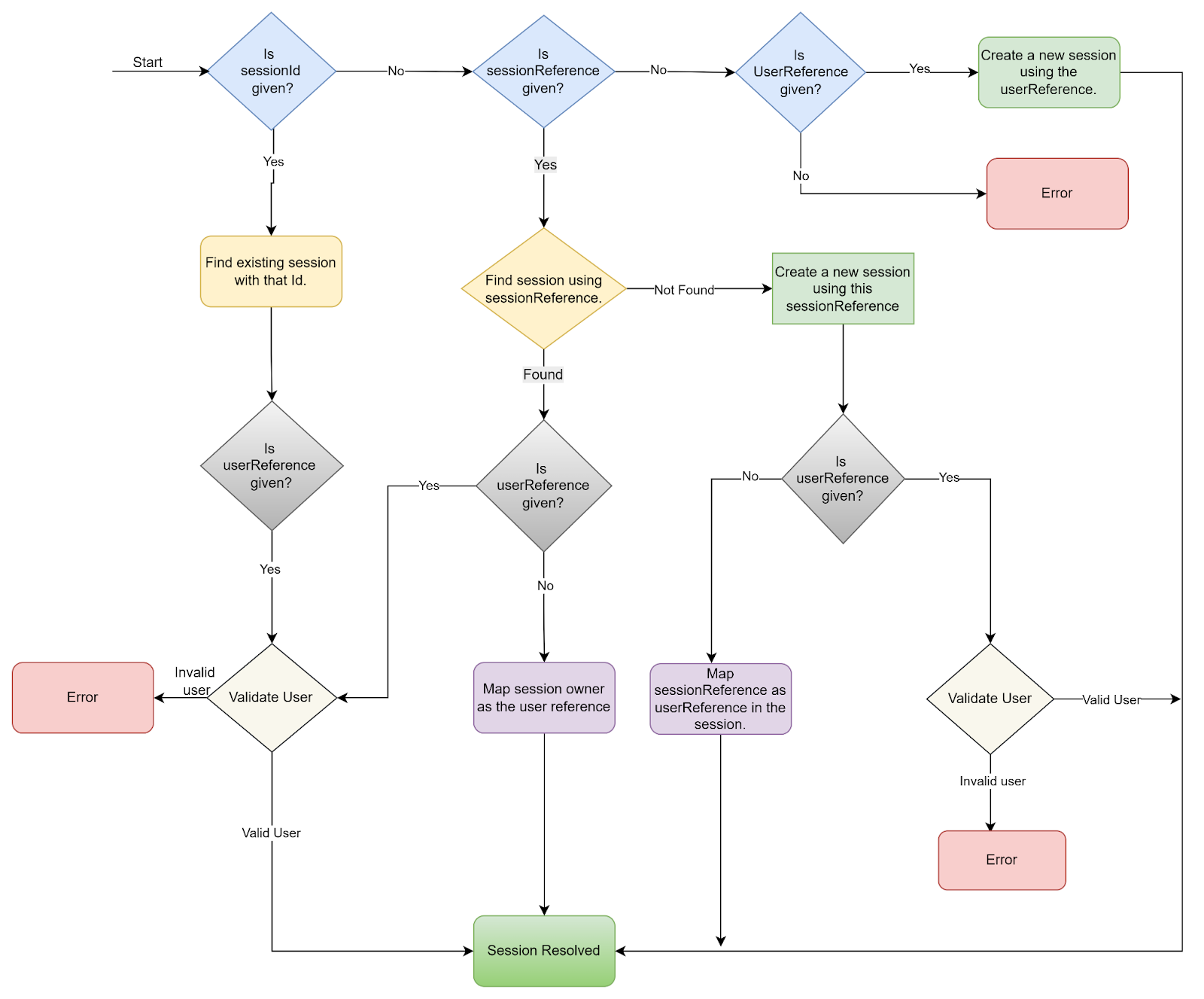

The above session resolution steps are summarized using the flow chart below.
Authorization Process for API Calls¶
If an agent in an Agentic App includes tools that require authorization to execute APIs, the platform ensures that the necessary authorizations are completed before any API calls are made during the agent’s execution.
When OAuth Authorization is Required
At the first invocation of the session (via the Session or Execute API), if any required authorization is pending, the API will return a response containing a special event type: IDP_Redirect. This indicates that the user needs to complete an authorization flow before the agent can proceed. The response includes:
- An IDP_Redirect event.
- A URL for the user to complete the authorization process.
- The identity provider (IDP) name and the authentication method.
Sample Response
{
"messageId": "msg-260f4d3c-5b8c-4056-af97-11317fc28c8d",
"events": [
{
"type": "IDP_Redirect",
"content": {
"auth_profiles": [
{
"url": "https://agent-platform.kore.ai/r/396c63515671634648357955",
"idpName": "Google",
"isAuthorized": false,
"sso_type": "oauth2"
}
]
}
}
],
"output": [
{
"type": "text",
"content": "Hello! How can I assist you today with HR, Finance, or IT queries?"
}
],
"sessionInfo": {
"status": "idle",
"userReference": "s-b8987503-696b-4111-a006-49c0cbcf0fb9",
"sessionReference": "s-b8987503-696b-4111-a006-49c0cbcf0fb9",
"userId": "u-f5e5e830-70d4-53d6-8034-86bfa765c04a",
"sessionId": "s-54f40bda-1505-4f9e-b38e-88d39ea36d58",
"runId": "r-41ad20e0-6295-4f0e-9b04-e51875356107",
"appId": "aa-c31cccce-d0bf-4db5-a177-7ff45941c2d8",
"attachments": []
}
}
Next Steps
- Go to the URL in the events object and complete the authorization.
- Reinvoke the API after successful authorization.
Important Notes
- Authorization is only required once per user (across sessions) or until the token expires.
- If one or more authorizations are pending, all of them must be completed before continuing. If the required authorization is not completed, the associated tools will return an error upon invocation.
