Create a Code Tool¶

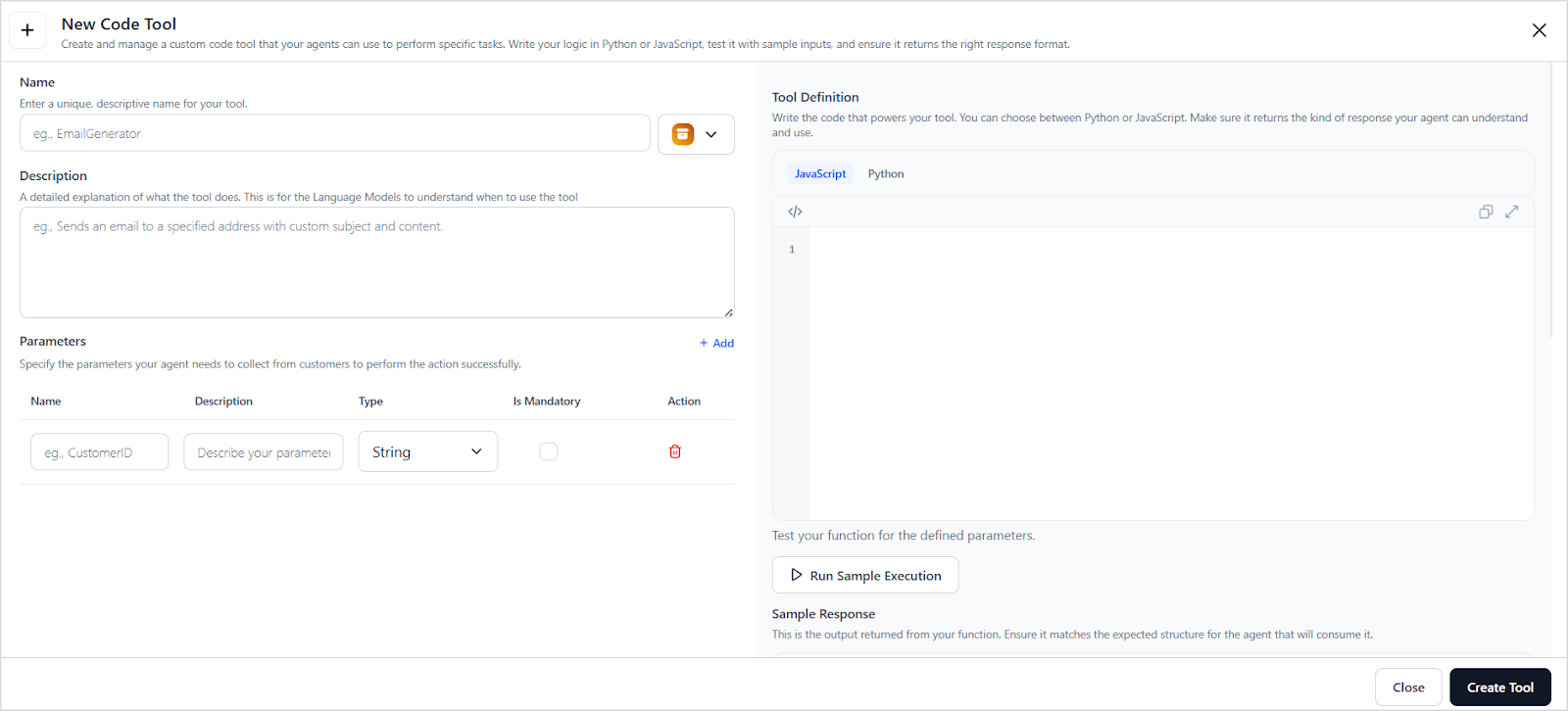

To create a code tool, click +Create Tool in the Tools page while creating the agent and select Code Tool. Provide the following details for the tool.

Tool Metadata¶

Name

Enter a unique and descriptive name for the tool to help identify its purpose.

Example: SQL Query Processor

Don't add special characters or spaces. Only alphabets, numbers, and underscores are allowed in the name.

Description

Provide a clear and detailed description of the tool’s functionality. This helps the agent understand:

What the tool does.
When to use it.
How to use it.

Example Description for SQL Query Processor: "This tool will execute an SQL query and return the result."

The LLM uses this description to determine when to invoke the tool.

Input Parameters¶

Define the input parameters required by the tool to perform its task. For each parameter, specify:

Name: A unique identifier for the parameter.
Description: Explains the parameter’s purpose to help the agent extract relevant data from user input.
Type: The expected data type. The following types are supported:
- string: sequence of characters
- number: An integer value
- boolean: true or false

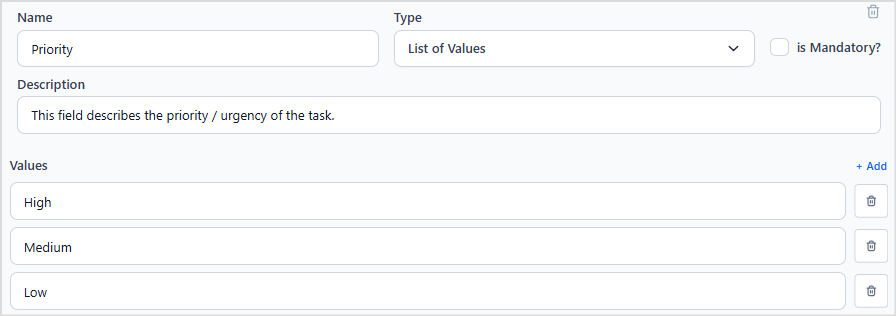

- list of values: A restricted set of predefined values. This type is useful when the input must be one of a specific set of options. For this type of field, add all the values that the parameter can take. For example, a parameter priority of type enum might accept values like "low," "medium," or "high."
- object. A structured data type that includes one or more nested parameters. Use this when multiple related values must be grouped. For example, a location object might include fields like building, city, and zip code. An object type can have a nested structure. Adhere to the Sample Schema for detailed structure and formatting guidelines.
- isMandatory: Indicates whether this input parameter is mandatory or not.

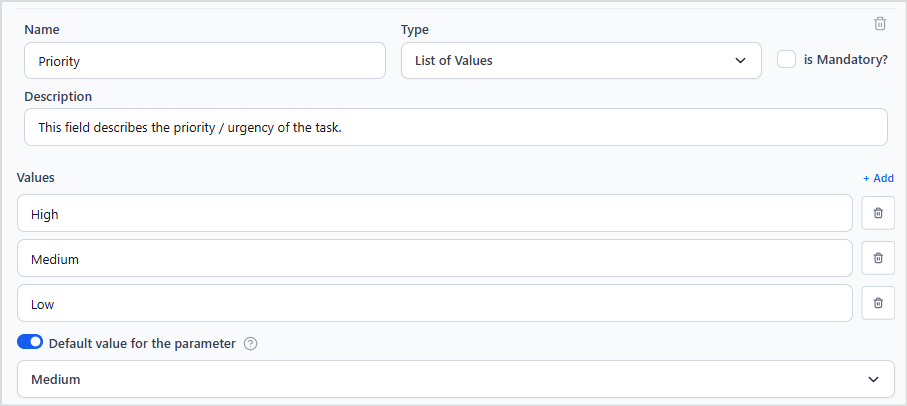

- Default value of the parameter: Enable this option to assign a default value to the parameter. This default value is used whenever the parameter value isn't found in the input. The data type for the default value must be same as that of the parameter itself. For instance, if the priority isn't specified in the user input, the default value of Medium is used when configured as shown below.

Defining an object parameter¶

Use an object parameter when a tool requires a structured input that groups multiple related fields. Object parameters enable structured, nested inputs and allow the agent to validate and construct accurate tool requests before execution.

When defining an object-type parameter:

use the properties field to list all the fields inside the object. This field is mandatory for an object type of parameter.
For each field in properties, specify the
- type (string, number, boolean, enum, or object): The data type of the field.
- description(optional): A brief explanation of the field’s purpose.
- required(optional): Indicates whether the field is mandatory.
Use the required array to list the mandatory fields of an object.
If there is an object within this object, its type must be set as object and must have its own properties and required fields to define the fields within this sub-object.

Example: Assume an object field is expected to contain ID, email, and location of an employee, where ID and email are mandatory fields. The location field is an object containing the city, state, and country fields, where only city and country are mandatory. Here is a sample schema for this type of employee object.

```json
{
    "type": "object",
    "properties": {
        "id": {
        "type": "string",
        "description": "Unique user identifier"
        },
        "email": {
        "type": "string",
        "description": "User email address"
        },
        "location": {
        "type": "object",
        "properties": {     //  mandatory when type is object
            "city": {
            "type": "string",
            "description": "City where user resides"
            },
            "state": {
            "type": "string",
            "description": "State where user resides"
            },
            "country": {
            "type": "string",
            "description": "Country where user resides"
            }
        },
        "required": [
            "city",
            "state"
        ]
        }
    },
    "required": [
        "id",
        "email"
    ]
}
```

Output Parameters¶

The Output Parameters section allows you to define how the response returned by the external agent is processed and made available to the application. You can choose one of the following modes:

Use Complete Tool Output Select this option to return the entire response received from the tool as response. without modification. This is the default option and is recommended when the tool returns responses in the required format.

Include Tool Response in Artifacts : When enabled, the response returned by the tool is included in the artifacts field of the Execute API response payload. This setting affects only the API response and doesn't change tool execution behavior, playground simulations, or other agent and tool functionalities.

Define Custom Parameters Select this option to extract specific values from the tool’s response and map them as structured outputs. It gives control over which parts of the response are passed to the agent or stored as artifacts.

When this option is selected, you can configure one or more output parameters. Each output parameter defines how a specific value from the response is extracted. Provide a name for the output parameter. This name is used to reference the extracted value. Select the data type of the output parameter and specify the path to the value in the response payload. The platform uses this path to locate and extract the required data.

Example: To extract the message field from the response, add name as Status, set type as string and set the path like tool.output.status.message.

You can click + Add to define multiple output parameters if the response contains several values that need to be used by the agent.

Output Routing : Once the output is extracted, you can define where the value should be routed.

Agent: Routes the extracted value to the agent so it can be used in reasoning, decision-making, or subsequent steps.
Artifacts: Stores the extracted value in the artifacts section of the response payload. This allows the value to be accessed programmatically through the API response.

Tool Definition¶

This is the core logic of the tool. This is the custom code that gets executed when the tool is invoked. This can be written in either JavaScript or Python.

For the SQL Query processor, below is a sample JavaScript code.

const fetch = require('node-fetch');

async function executeSQL(query) {
    const url = 'https://bldrhpxxxxmcvhywchhd.supabase.co/rest/v1/rpc/execute_dynamic_query';
    const headers = {
        'Content-Type': 'application/json',
        'apikey': 'your-api-key-here'
    };
    const body = JSON.stringify({ query });

    try {
        const response = await fetch(url, {
            method: 'POST',
            headers: headers,
            body: body
        });

        const responseData = await response.json();
        return JSON.stringify(responseData);
    } catch (error) {
        console.error('Error:', error.message);
        return JSON.stringify({ error: 'Error in using API' });
    }
}

// Execute with input parameter
const query = $query;
return executeSQL(query);

Similarly, to print the booking confirmation message using Python, use the following code.

from datetime import datetime

def booking_confirmation(source, destination):
    return f"Ticket booked from {source} to {destination} on {datetime.now()}"

return booking_confirmation(source, destination)

Tool Testing¶

Before finalizing the tool, test its functionality to ensure it behaves as expected. Click Run Sample Execution and provide the required input parameters. Review the generated sample response to verify correct execution.

The response also includes execution logs along with the script output. These logs can be used for troubleshooting and debugging.

After the tool is defined and tested successfully, click Create Tool to add it to the agent. After the tool is added, it becomes available for use and is automatically invoked by the agent when a matching intent is detected.
