Supervisor: AI Agents Orchestration

The Supervisor Pattern is an architectural approach for designing agentic applications where a central orchestrator serves as a supervisor to manage and coordinate multiple specialized AI agents. This pattern efficiently handles complex tasks by decomposing them into smaller subtasks and delegating them to the appropriate, specialized agents, thereby creating a structured, hierarchical workflow.

The pattern provides a structured framework for building complex agentic systems that require coordination between multiple specialized components. Its hierarchical approach enables efficient task management while maintaining a transparent chain of command through the central orchestrator. The pattern is particularly effective for scenarios that require diverse expertise across multiple domains, where a single agent would struggle to maintain in-depth knowledge across all the necessary areas of specialization.

Key Benefits

The Supervisor Pattern is an effective method for orchestrating multi-agent systems. It provides centralized control, modularity, and scalability. A supervisor agent delegates tasks and manages communication among the agents. This allows organizations to develop robust, efficient, and easily expandable multi-agent solutions.

  • Modularity: The pattern enables a design where each agent specializes in a specific domain or task, resulting in a more efficient and scalable system.

  • Scalability: By distributing tasks among multiple agents, the agentic app can handle complex tasks and scale effectively.

  • Specialization: Agents can be designed to possess in-depth knowledge and skills in specific areas, resulting in more accurate and effective task execution.

  • Flexibility: The orchestrator can dynamically select and coordinate agents based on the task requirements, enabling the system to adapt to different scenarios.

  • Fault Tolerance: If an agent fails or provides incorrect results, the orchestrator can detect and handle the issue, ensuring the overall system remains functional.

Core Architecture and Functionality

The Supervisor Pattern implements a systematic workflow with clearly defined stages:

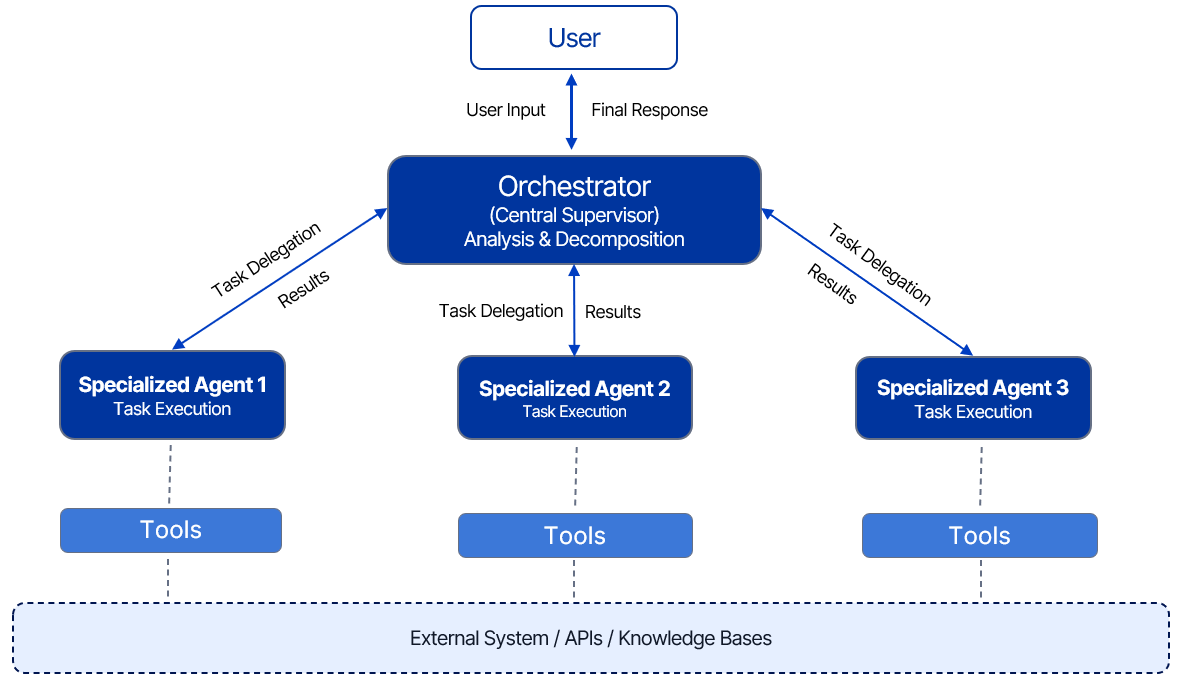

Supervisor Pattern Architecture

  1. User Input Reception:

    • The system receives an initial query or request from the user.

  2. Orchestrator Analysis:

    • The central orchestrator analyzes the input to understand the intent and context.
    • Functions as the supervisory component of the system.

  3. Task Decomposition:

    • The orchestrator breaks down complex requests into smaller, manageable subtasks.
    • Creates a logical hierarchy of work to be performed.

  4. Agent Selection & Delegation:

    • Orchestrator identifies the most suitable specialized agents for each sub-task.
    • Selection is based on each agent's specific capabilities and domain expertise.
    • Provides necessary context and information to each agent.

  5. Parallel Agent Execution:

    • Agents independently execute their assigned sub-tasks.
    • Utilize their specialized skills, knowledge, and tools.
    • May interact with external systems or APIs as needed

  6. Result Aggregation & Conflict Resolution:

    • The orchestrator collects results from all agents
    • Resolves any conflicts or inconsistencies between agent outputs
    • Ensures coherence across the complete solution

  7. Response Generation:

    • The orchestrator synthesizes a unified response from the combined results of the agents.
    • Delivers the final output to the user.

Learn more - how this pattern is used for orchestrating multiple AI Agents by the Agent Platform.
