Memory Stores in Agentic Apps¶

Memory stores in Agentic Apps enable agents to retain, access, and manipulate information during a session or across multiple sessions or interactions. They are essential for building intelligent, personalized, and context-aware experiences by maintaining data during agent workflow executions.

Agentic Apps support two main types of memory:

Session Meta Memory: Default temporary memory for contextual data within a session. This is a default read-only system memory and cannot be directly updated by users.
Custom Memory Stores: Persistent, user-defined stores that can be read and written to using code tools. The lifetime of the memory store varies as per the access type assigned to the store during creation.

Creating Memory Stores¶

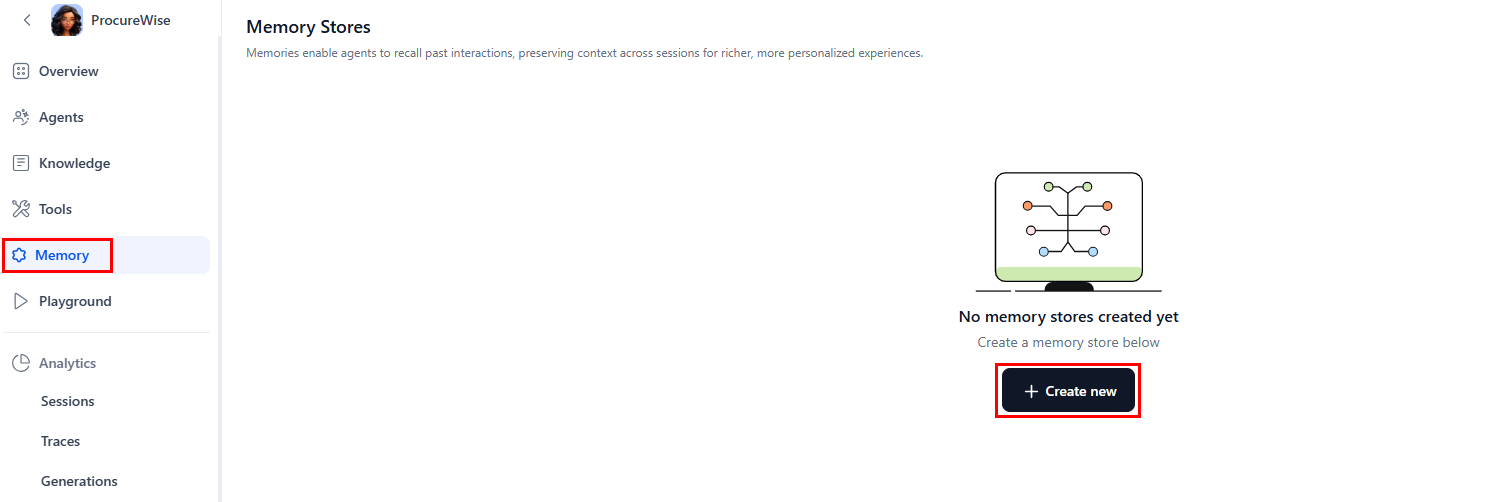

To create a new memory store, go to the Memory page in the app and click on Create new.

To set up Memory store, provide the following details.

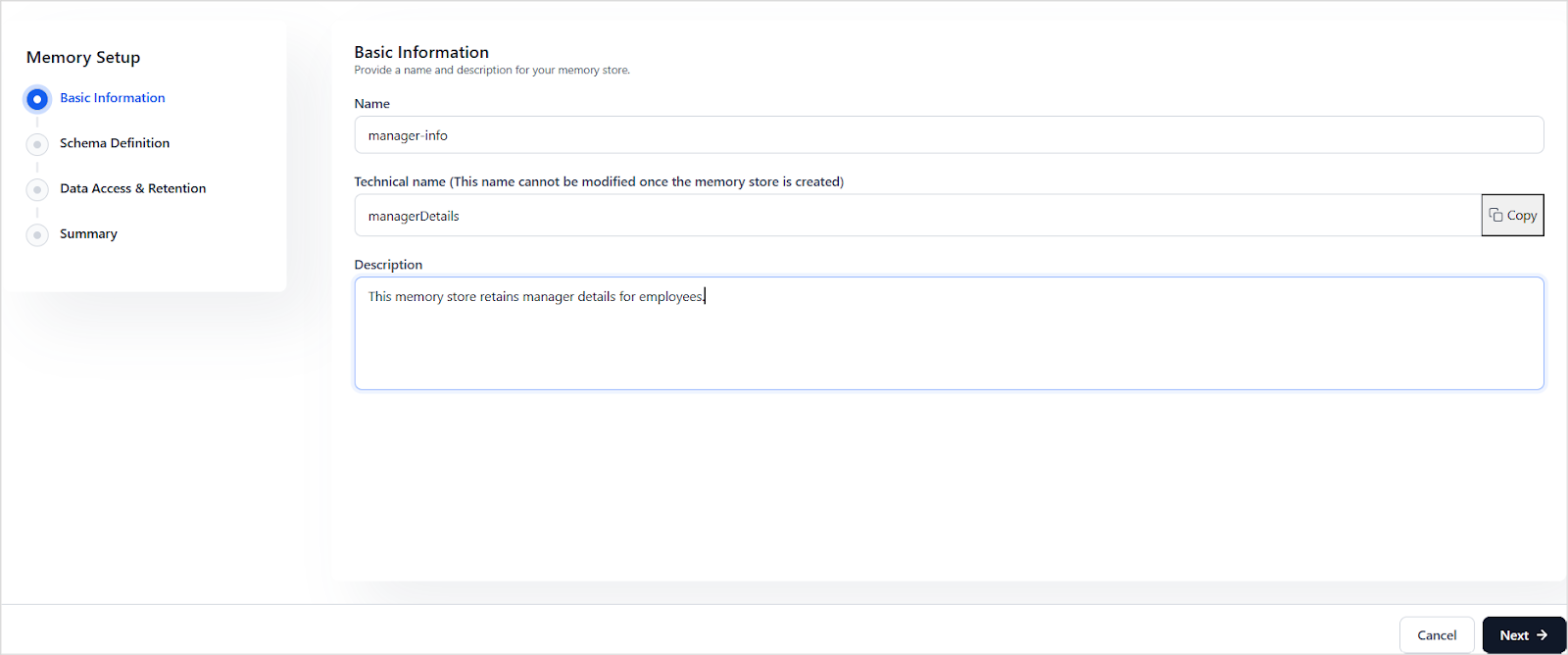

Basic Information

Name: Provide a user-friendly name for the store. Once a store is created, this name can be updated but it does not change the technical name of the store.

Technical Name: Provide a unique name for the store. This name cannot be modified after the store is created. Note that this name should not have any special characters or spaces. This is the name that is used within prompts and code tools to refer to the memory store.

Description: Provide a brief summary describing the intended usage or purpose of this memory store.

Schema Definition

Define the structure of the data to be stored in the memory store. This schema ensures consistency and clarity in how data is stored and accessed. The schema is defined using the JSON Schema specification. It outlines the expected fields (keys) and their data types. For instance, to define a memory store, employee_details, that stores the employee details like name and location, use a schema as shown below.

{
  "type": "object",
  "properties": {
    "emp_ID": {
      "type": "number"
    },
    "firstName": {
      "type": "string"
    },
    "lastName": {
      "type": "string"
    },
    "preflanguage": {
      "type": "string"
    }
  }
}

Require strict adherence: Check this option to enforce that the updates to memory exactly match the schema defined for the memory store. If there is any mismatch, the updates fail.

Data Access and Retention

This section is used to control data access and retention.

Access Type: This field specifies the visibility and scope of the data in the memory store. It can take one of the following values:

User-specific: Data is scoped to individual users. This data is available across the sessions and is specific to the user.
Application-wide: Data is scoped to the app level. This data is available to all users throughout the application, irrespective of the sessions.
Session-level: Data is only available within the same session.

Retention Policy: This field specifies how long the data is retained, irrespective of the access type value. This can be set to session-level, in which case it is retained only for the duration of a session. Alternatively, you can specify the time( 1 day, 1 week, or 1 month) for which the data must be retained before automatically removing it from the memory store.

Note

Set appropriate retention periods based on specific usage of the data to balance performance, cost, and compliance.

Access Type	Scope	Identifiers	Use Case Example
User-specific	Data tied to individual users	AppId and UserId	Store employee language preference for each user
Application-wide	Shared across the application	AppId	Store announcement message to be displayed to all employees upon login.
Session-level	Valid only during the active session	AppId and SessionId	Store intermediate steps in a multi-turn dialog

Review and save the configuration to create the memory store.

Accessing Memory Stores from Prompts¶

To access the content in the memory stores from the prompts, use the following format:

{{memory.<store-name>.<field-name>}}

Where, store-name: technical name of the store Field-name: name of the field as defined in the schema of the memory store.

Accessing Memory Stores from Code Tools¶

Agentic Apps provide Memory Stores to persist data across interactions. These stores can be read from within prompts and code tools, but can be updated or deleted via code tools only.

A Memory store can be referenced in code tools using its technical name only.
sessionMeta cannot be manipulated via code tools.

Supported Languages¶

Memory operations can be performed using JavaScript or Python in code tools.

In JavaScript, memory methods are async and return a Promise. Use them with await keyword.
In Python, methods are synchronous and return values directly.

Reading from Memory Store¶

Use the following format to access a memory store in the code tools and retrieve either the complete record or specific fields using projections.

memory.get_content(<store_name>,<projections>)

Parameters:

store_name: (string) The technical name of the memory store.
projections (optional): JSON object specifying the fields to retrieve. If omitted, the entire record is returned.

Javascript Examples:

To fetch the complete employee record from the store defined above, use the following
```
await memory.get_content("employee_details")
```
To fetch the first name of the employee from the store, use:
```
await memory.get_content("employee",{"firstname":1})
```
Here, {"firstname": 1} is a projection object, indicating that only the firstname field should be included in the result.
To fetch both first name and location (subset of the complete record), use:
```
await memory.get_content("employee", {"name": 1, "preflanguage": 1})
```

Writing to Memory Store¶

Use the following format to create or update a record in the memory store. This method:

Creates a new record if none exists.
Updates the existing record if one is found (based on sessionID, userId, or applicationId, depending on the store’s access type).

memory.set_content(<store_name>,<data_object>)

Parameters:

store_name(string): the technical name of the store.
data_object: A JSON object representing the fields to write or update in the memory store.

Note

Records are stored based on the memory store’s access context: session, user, or application.
Fields not included in the update are retained as-is.

Javascript Examples

To update the name in a record. Based on the access type of the memory store, if the corresponding record does not already exist, the following method will create a new record and set the firstname as John.
```
await memory.set_content("employee",{"firstname":"John"})
```
If, however, a record exists but the firstname is different, this method will overwrite the first name in the same record.

To update multiple fields, specify the fields to be updated in the data_object.

await memory.set_content("employee", {
  "firstname": "John",
  "preflanguage": "English"
})

Deleting Content from Memory Store¶

To delete a record from the memory store, use the following format. Depending on the access type of the store, the following method will delete the record corresponding to the session, user, or application.

memory.delete_content(<store_name>)

Parameters

store_name: the technical name of the memory store from which content is to be deleted.

Javascript Example

To delete the employee details from the store.

await memory.delete_content("employee")

Session Meta Memory¶

The sessionMetamemory store is the default memory store used in Agentic Apps for handling metadata and session-specific information. It is typically used to:

Store temporary session data.
Maintain contextual metadata

Schema

This memory store follows the following schema:

{
  "type": "object",
  "properties": {
    "metadata": {
      "type": "object"
    },
    "sessionInfo": {
      "type": "object"
    }
  }
}

The metadata field is used to maintain any contextual metadata information. Developers can update this field only via the APIs or while accessing the platform via XO or AI for Work.

The sessionInfo is a system-populated object that includes the following session-related fields:

sessionId
appId
sessionReference
userReference
userId
runId

Scope and Identification

The scope of this memory store is limited to a session. The content in this memory store is identified using appId and sessionId.

Accessing sessionMeta

To access the sessionMeta from agent and orchestrator prompts, use the following format:

{{memory.sessionMeta.<field-name>}}

For example, you can add the user name to the prompt as follows if the metadata has the name of the employee.

The name of the employee is {{memory.sessionMeta.metadata.empName}}

Note: This is a read-only memory store and cannot be updated via tools. However, you can update the metadata field in sessionMeta via APIs. Refer to this to learn more.
